contact us 0755-2955584220053散熱風扇

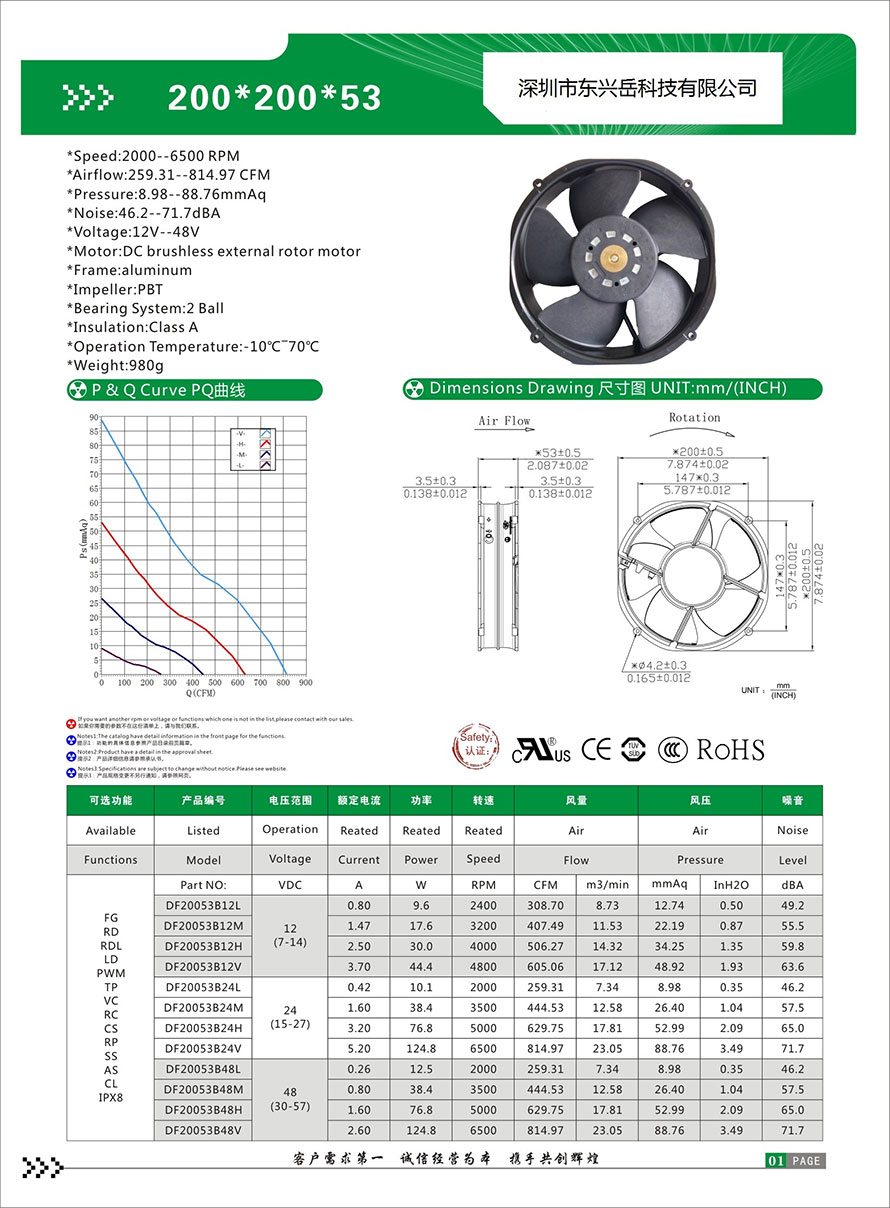

首頁 > 產品展示 > 直流散熱風扇 > 20053散熱風扇
產品介紹：1、采用雙滾珠軸承，具有長壽命低噪音等特點
2、具有IP8防水功能
3、采用環保防火材質
| 可選功能 | 產品編號 | 電壓范圍 | 額定電流 | 功率 | 轉速 | 風量 | 風壓 | 噪音 | ||
| Available | Listed | Operation | Reated | Reated | Reated | Air | Air | Noise | ||
| Functions | Model | Voltage | Current | Power | Speed | Flow | Pressure | Level | ||
|
FG RD RDL LD PWM TP VC RC CS RP SS AS CL IPX8 |
Part NO: | VDC | A | W | RPM | CFM | m3/min | mmAq | InH2O | dBA |
| DF20053B12L | 12 (7-14) | 0.80 | 9.6 | 2400 | 308.70 | 8.73 | 12.74 | 0.50 | 49.2 | |
| DF20053B12M | 1.47 | 17.6 | 3200 | 407.49 | 11.53 | 22.19 | 0.87 | 55.5 | ||
| DF20053B12H | 2.50 | 30.0 | 4000 | 506.27 | 14.32 | 34.25 | 1.35 | 59.8 | ||
| DF20053B12V | 3.70 | 44.4 | 4800 | 605.06 | 17.12 | 48.92 | 1.93 | 63.6 | ||
| DF20053B24L |
24 (15-27) |
0.42 | 10.1 | 2000 | 259.31 | 7.34 | 8.98 | 0.35 | 46.2 | |
| DF20053B24M | 1.60 | 38.4 | 3500 | 444.53 | 12.58 | 26.40 | 1.04 | 57.5 | ||
| DF20053B24H | 3.20 | 76.8 | 5000 | 629.75 | 17.81 | 52.99 | 2.09 | 65.0 | ||
| DF20053B24V | 5.20 | 124.8 | 6500 | 814.97 | 23.05 | 88.76 | 3.49 | 71.7 | ||
| DF20053B48L |
48 (30-57) |
0.26 | 12.5 | 2000 | 259.31 | 7.34 | 8.98 | 0.35 | 46.2 | |
| DF20053B48M | 0.80 | 38.4 | 3500 | 444.53 | 12.58 | 26.40 | 1.04 | 57.5 | ||
| DF20053B48H | 1.60 | 76.8 | 5000 | 629.75 | 17.81 | 52.99 | 2.09 | 65.0 | ||
| DF20053B48V | 2.60 | 124.8 | 6500 | 814.97 | 23.05 | 88.76 | 3.49 | 71.7 | ||
