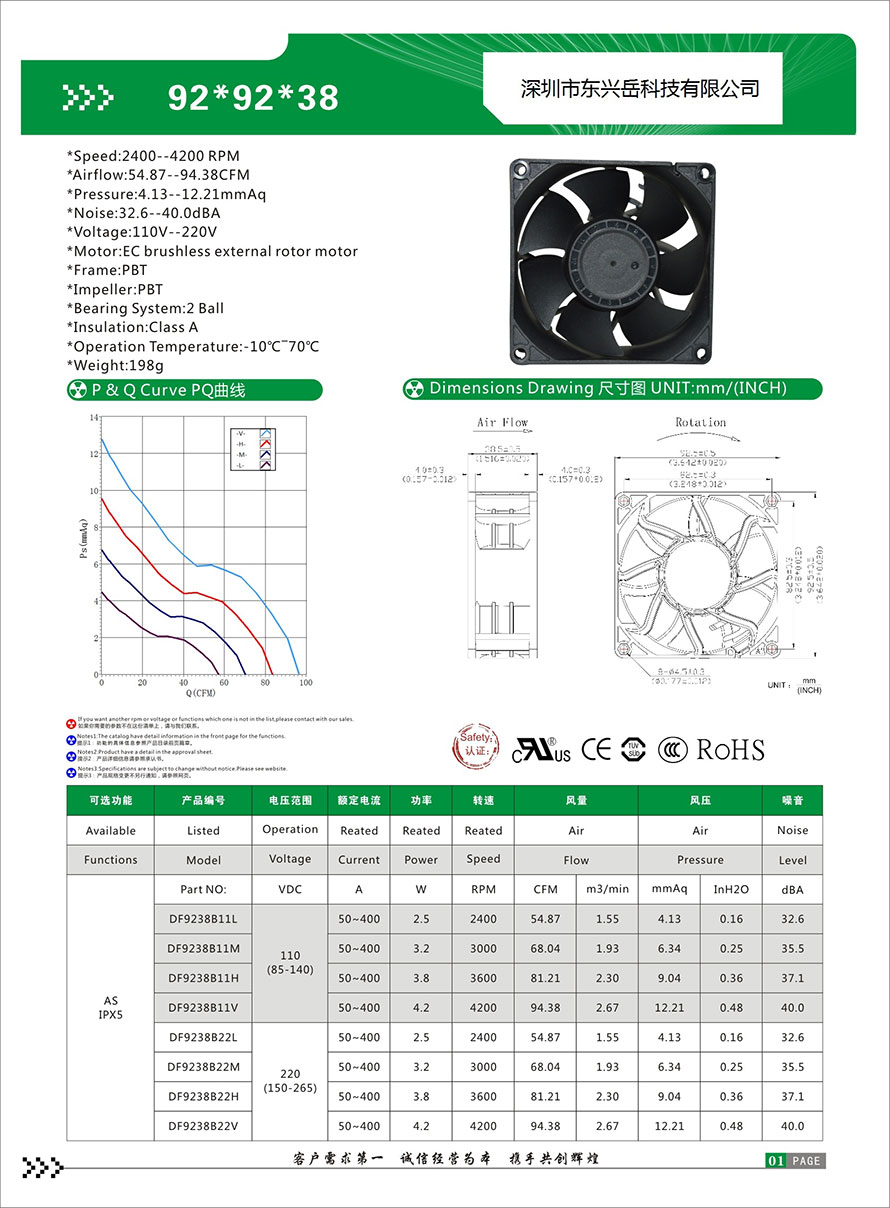

9238交流風扇
首頁 > 產品展示 > EC交流轉直流風機 > 9238交流風扇

可選功能	產品編號	電壓范圍	額定電流	功率	轉速	風量		風壓		噪音
Available	Listed	Operation	Reated	Reated	Reated	Air		Air		Noise
Functions	Model	Voltage	Current	Power	Speed	Flow		Pressure		Level
FG RD RDL LD PWM TP VC RC CS RP SS AS CL IPX8	Part NO:	VDC	A	W	RPM	CFM	m3/min	mmAq	InH2O	dBA
	DF9238B12L	12 (7-14)	0.35	4.20	4000	92.18	2.36	11.65	0.35	46.7
	DF9238B12M		0.78	9.36	5500	125.10	3.54	21.50	0.85	54.2
	DF9238B12H		1.70	20.40	7000	158.02	4.47	34.22	1.35	59.3
	DF9238B12V		2.60	31.20	8500	179.97	5.09	44.39	1.75	63.5
	DF9238B24L	24 (15-27)	0.18	4.32	4000	92.18	2.61	11.65	0.46	46.7
	DF9238B24M		0.42	10.08	5500	125.10	3.54	21.50	0.85	54.2
	DF9238B24H		0.82	19.68	7000	158.02	4.47	34.22	1.35	59.3
	DF9238B24V		1.25	30.00	8500	190.95	5.40	49.97	1.97	65.8
	DF9238B48L	48 (30-57)	0.09	4.32	4000	92.18	2.61	11.65	0.46	46.7
	DF9238B48M		0.21	10.08	5500	125.10	3.54	21.50	0.85	54.2
	DF9238B48H		0.41	19.68	7000	158.02	4.47	34.22	1.35	59.3
	DF9238B48V		0.62	29.76	8500	190.95	5.40	49.97	1.97	65.8
